PCD100の4ホール専用12本スポークホイール。

  1. コンパクトカーにターゲットを絞り、PCD100の4ホール専用デザインというコンセプトで設計された12本スポーク。
  2. YOKOHAMAホイールが誇る最先端のキャスティング技術を使った高品質鋳造製法と圧延スピニングにより高密度組織を生むフロー・フォーミング工法を組み合わせた鋳造1ピースホイール。
  3. スポークとリムとの結合部分裏側を特殊加工で削り取るアンダーリングデザインを採用。塗装後の追加のダイヤモンドカットでアルミ地の輝きを強調。スモールサイズでも立体感に富むデザインを実現している。
  4. 3コート3ベイクの高品位塗装。カラーバリエーションはシャインシルバー、ダークガンメタリック、ブロンズ(一部サイズ設定なし)、そしてブライトクローム(一部サイズ設定なし)の4色を設定。
  5. センターオーナメントは、アルミ材を使用。リング部はアルミ削り出し、オーナメント部はアルミ鍛造成型品。ブライトクロームには、フルクロームメッキ仕上げ。その他のカラーには耐光性の高いコバルトアルマイト処理をした上で、さらに凹ロゴ文字部分にブラックの色指しを施した仕上げ。リングを固定する6個のビスはステンレスを使用。(ブライトクロームはステンレスクロームメッキボルト)
  6. 専用小径ナットを付属。(購入時にピッチ指定。インポートカー装着は別売りボルトが必要)また、専用リムステッカーも付属。
  1. These 12-spoke wheels are specially designed PCD100s in 4-hole sets aimed specifically at the compact car market.
  2. This one-piece forge-cast wheel combines flow forming production with YOKOHAMA's leading-edge casting technology to create the highest quality in today's aluminum wheel market.
  3. Adopts the under-ring design where special milling techniques are used on the back of the spoke-rim connection. After painting, diamond cutting is used to emphasize the brilliant finish of the aluminum. This design looks totally sculpted, despite its small size.
  4. The high-quality painting process requires three coatings and three bakings. The selection of four colors includes Shine Silver, Dark Gun Metallic, Bronze (not available in some sizes), and Bright Chrome (not available in some sizes).
  5. The center ornament is of aluminum. The ring portion is milled aluminum and the ornament portion is form forged. The bright chrome portion is fully chrome plated. Other colors are finished with cobalt alumite which has superior UV resistance, and the engraved logotype is set off with black enamel. Six stainless steel bolts hold the ring in place. (The bright chrome wheels use chrome-plated stainless steel bolts)
  6. Comes with special small diameter nuts. (Specify the pitch when purchasing. Bolts for imported cars are sold separately.) Also comes with special rim sticker.
スポークとリムとの結合部分下側を一周にわたって特殊加工で削り落としたアンダーリングデザイン。この造形によってスモールサイズのホイールに立体的なデザイン的迫力を与えている。

Adopts the under-ring design where special milling techniques are used all around the back of the spoke-rim connection. These sculpted wheels offer the dynamic appeal of three-dimensional design, even though they are smaller in size.
アルミ材とステンレスを使用したセンターオーナメントパーツ。アルミ材削出し成型のリング部分は耐光性に優れたコバルトアルマイト処理(ブライトクロームはクロームメッキ)。アルミ鍛造成型で深さ1mmのロゴ文字を刻むオーナメント部分は、パールシルバー(マット)塗装にブラックの文字色指しの仕上げ。6本のリング固定ビスは、ステンレスを使用している(ブライトクロームのみクロームメッキ処理)。

This center ornament is made of stainless steel and aluminum. The aluminum is precision milled with a chrome-plated ring that is finished with cobalt alumite, which has superior UV resistance. (Bright Chrome is chrome-plated) The cast logotype is engraved to a depth of 1mm on the ornament, with the surface painted pearl silver (matte) and the letters in black enamel. The six screws that hold the ring in place are made of stainless steel (bright chrome center ornaments have chrome-plated screws).

KREUTZER SERIES XIIi SIZE LIST for Japanese Cars

この商品は販売終了となりました。

RIM SIZE
(INCH×W)
PCD
(mm)
HOLE IN SET
(mm)
COLOR/PRICE(YEN)
シャインシルバー ダークガンメタリック ブロンズ ブライトクローム
(SS) (DG) (BZ) (BC)
▲14×5.0J 100 4 45 39,050[税込] 39,050[税込] - -
▲15×5.0J  100 4 45 41,250[税込] 41,250[税込] 41,250[税込] 52,250[税込]
38 41,250[税込] 41,250[税込] - -
15×6.0J  100 4 50 43,450[税込] 43,450[税込] 43,450[税込] 54,450[税込]
38 43,450[税込] 43,450[税込] - -
15×6.5J 100 4 40 44,550[税込] 44,550[税込] 44,550[税込] 55,550[税込]
▲16×5.0J 100 4 45 47,850[税込] 47,850[税込] 47,850[税込] 58,850[税込]
16×6.0J 100 4 50 49,500[税込] 49,500[税込] 49,500[税込] 60,500[税込]
16×6.5J 100 4 40 51,150[税込] 51,150[税込] 51,150[税込] 62,150[税込]
  1. カラー:
    SS ; シャインシルバー
    DG ; ダークガンメタリック
    BZ ; ブロンズ(一部サイズ設定なし)
    BC ; ブライトクローム(一部サイズ設定なし)
    −設定なし
  2. 消費税率は、10%となります。

  3. ハブ径 : ▲印はφ66、その他全てφ73
  4. クロイツァーシリーズXIIiは、1台分(4本)ご購入の場合に、専用の取付けナットが付属します。ご注文の際は、必ずナットピッチをご指定いただくとともに、1台分(4本)単位でご購入ください。

    [1台分(4本)単位以外でのご購入は、専用取り付けナットは別売となります。]

  5. インポートカー用ボルトは別売となります。
CAUTION
  1. Colors: SS ; SHINE SILVER DG ; DARK GUN METALLIC BZ ; BRONZE (not available in some sizes) BC ; BRIGHT CHROME (not available in some sizes) ○ ; Available − ; Not available
  2. The hub diameter ; φ73 except the common size for European cars.
  3. Special small-diameter nuts come with the purchase of a full set of four KREUTZER SERIES XIIi wheels. When ordering, please specify a 1.5 or 1.25 pitch. (When wheels are purchased in other than 4-unit sets, the nuts must also be purchased separately.)
  4. The bolt for import cars serves as an option.

Color variations

KREUTZER SERIES Xi
SHINE SILVER
KREUTZER SERIES Xi
BRONZE
KREUTZER SERIES Xi
DARK GUN METALLIC
KREUTZER SERIES Xi
BRIGHT CHROME
DEMIO
DEMIO
DARK GUN METALLIC
DEMIO
DEMIO
DARK GUN METALLIC
DEMIO
DEMIO
SHINE SILVER
DEMIO
DEMIO
SHINE SILVER

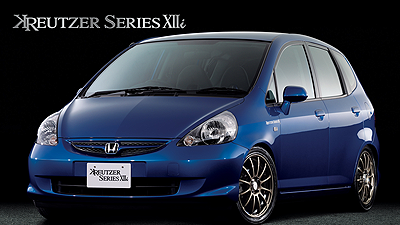

FIT
FIT
BRONZE
FIT
FIT
BRONZE
FIT
FIT
SHINE SILVER
FIT
FIT
SHINE SILVER
MARCH
MARCH
BRIGHT CHROME
MARCH
MARCH
BRIGHT CHROME
MARCH
MARCH
DARK GUN METALLIC
MARCH
MARCH
DARK GUN METALLIC
VITZ
VITZ
BRIGHT CHROME
VITZ
VITZ
BRIGHT CHROME
VITZ
VITZ
BRONZE
VITZ
VITZ
BRONZE
※画像は各チューナー様による装着の一例です。
車検・点検への適合を保証するものではありません。
